NOTE: SOON AVAILABLE

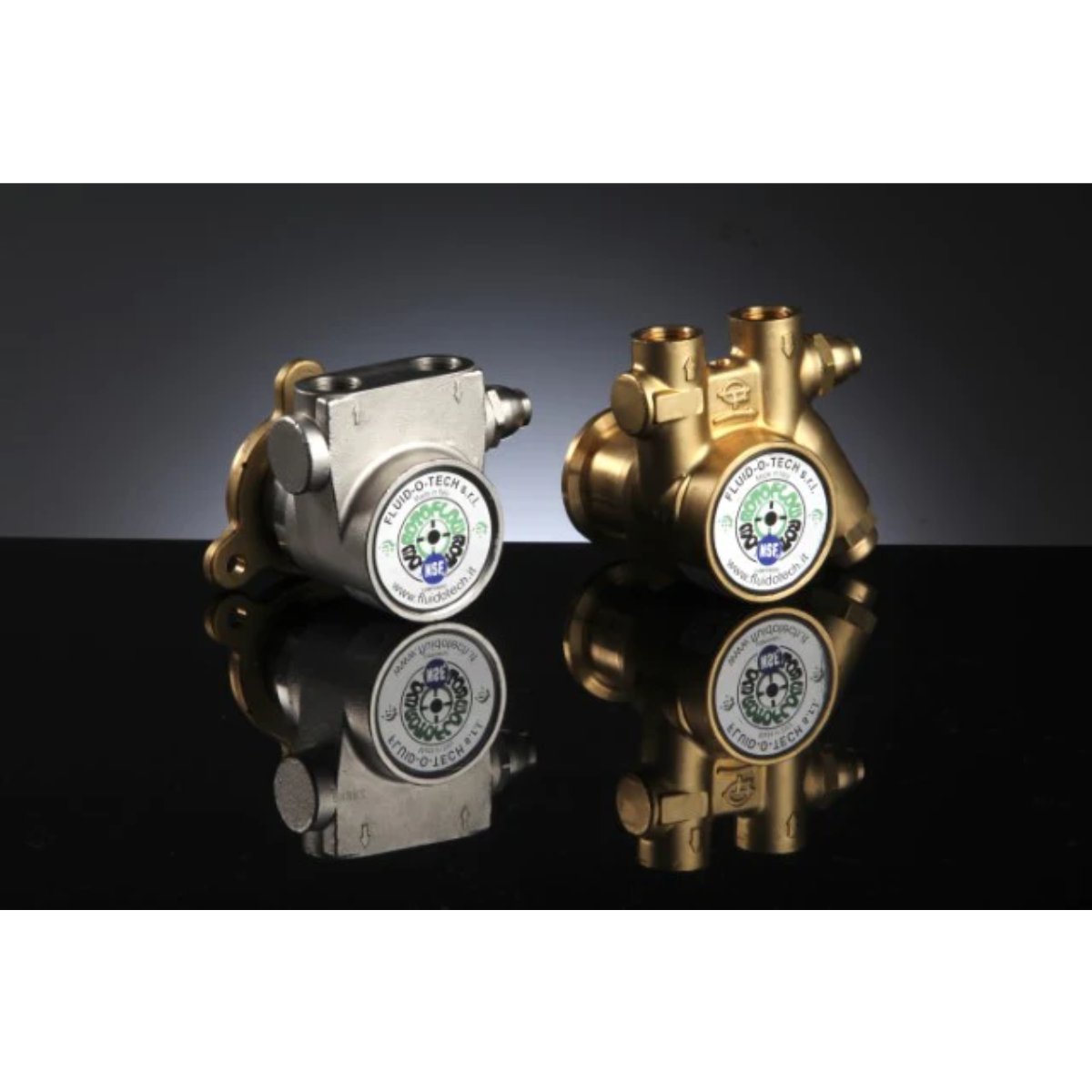

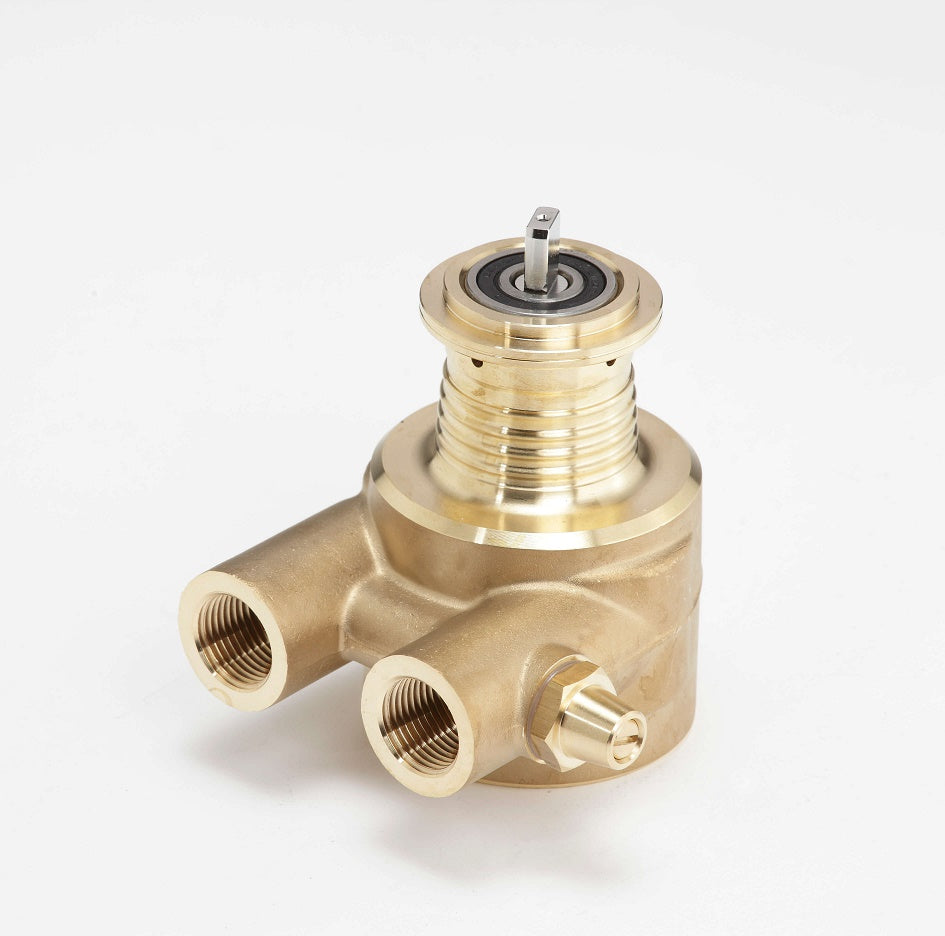

The rotary Vane Pump in the high volume series are available with brass and stainless steel housings, with NPT 1/2" connections and a pressure relief valve.

The capacity is 500 to 1000lt/h at 1450 rpm. These pumps can also be operated at 1725 rpm and deliver approx. 20% more power. The pressure of the pump is max. 16 bar. The series can be mounted directly on the NEMA 48Y motor using a V-band clamp and on the M80 IEC and NEMA 56C motors using an adapter.

Applicaton areas:

• Water treatment

• Reverse osmosis

• Welding machines

• Cooling water circulation pump

• Laser cooling

• Humidification systems

• Various industrial applications


Main features:

• Rotary vane pump High Volume

• Connections NPT 1/2"

• Standard bypass

• Brass or Stainless Steel body

• Flow rate 600lt/h

• Differential pressure max. 16bar

• Static pressure max. 20bar

• Max. Max. operating temperature 70°C

• NSF / WRAS certified


Components:

• Brass or stainless steel pump body

• Pump block graphite

• EPDM seals

• Stainless steel main spring

• Rotor and pump shaft made of stainless steel in one piece
